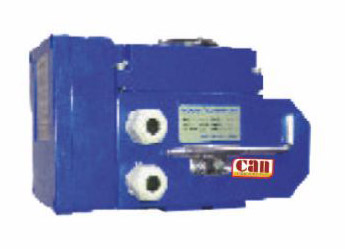

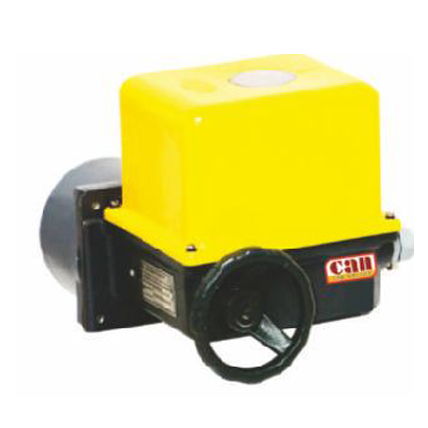

Electrical Actuator

Electrical Actuator

Specifications:

Power Supply	: 230 Volts A/C
Rotation	: 0-90°
Optional	: Modulating 4-20 MA Input Signal & Output Signal
Limit Switch	: 1 No + 1 NC Maximum Temp
Position Indicator	: Provided
Maximum Temp	: -20°c + 70°c
Operating Time	: 20 To 30 Sec

Specifications:

Power Supply	: 230 Volts A/C
Rotation	: 0-90°
Optional	: Modulating 4-20 MA Input Signal & Output Signal
Limit Switch	: 1 No + 1 NC Maximum Temp
Position Indicator	: Provided
Maximum Temp	: -20°c + 70°c
Operating Time	: 20 To 30 Sec

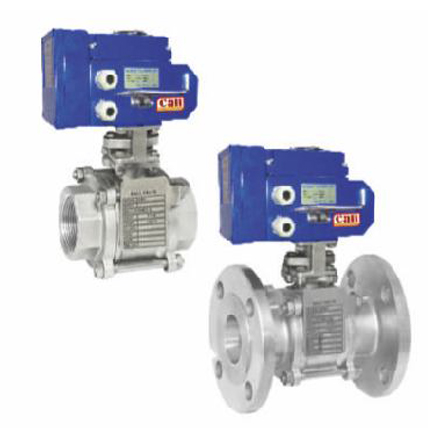

3 Pc. Ball valve with Electrical Actuator

3 Pc. Ball valve with Electrical Actuator

Specifications:

Actuator	: Electrical
Size Range	: 1/2" to 6"
Ball Valve	: 3 Piece Design
MOC	: CF8/CF8M/WCB C.S/PP
Ends	: Screwed/Flanged Socket Weld

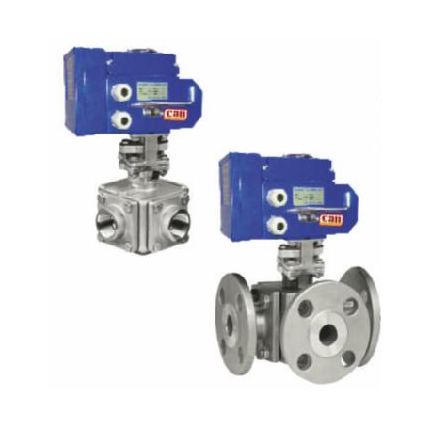

3 Way-4 Way Ball valve with Electrical Actuator

3 Way-4 Way Ball valve with Electrical Actuator

Specifications:

Actuator	: Electrical
Size Range	: 1/2" to 6"
Ball Valve	: 3 Piece Design
MOC	: CF8/CF8M/WCB C.S/PP
Ends	: Screwed/Flanged Socket Weld

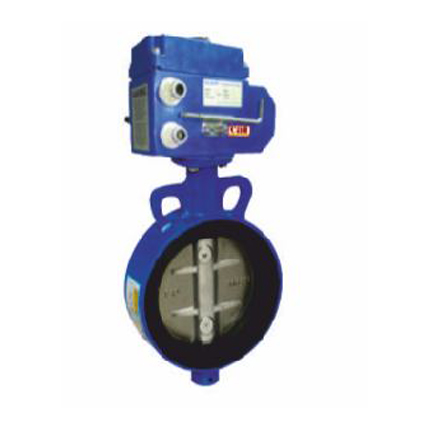

Butterfly Valve with Electrical Actuator

Butterfly Valve with Electrical Actuator

Specifications:

Actuator	: Electrical
Size Range	: 1.1/2" to 20"
Valve Body	: Cast Iron
Disc	: SG Iron/CF8/CF8M
Seals	: Nitrile
Pressure Rating	: PN 16 (Max.)
Oper.Temp.Range	: 80°C

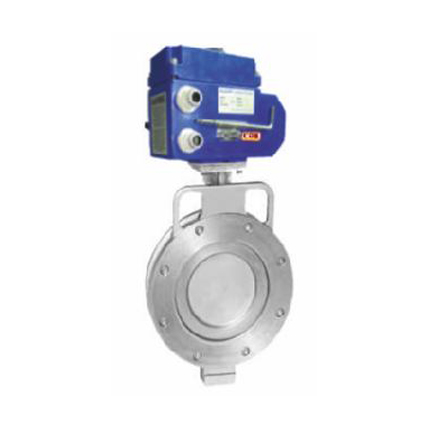

Off. Set Disc Butterfly Valve with Electrical Actuator

Off. Set Disc Butterfly Valve with Electrical Actuator

Specifications:

Actuator	: Electrical
Size Range	: 1.1/2" to 12"
Valve Body	: CF8/CF8M/WCB
Disc	: CF8/CF8M/
Seat	: PTFE Replacable / GFT
Mounting	: Universal
Pressure Rating	: ANSI 150#
Opr.Temp.	: 180°C/220°C

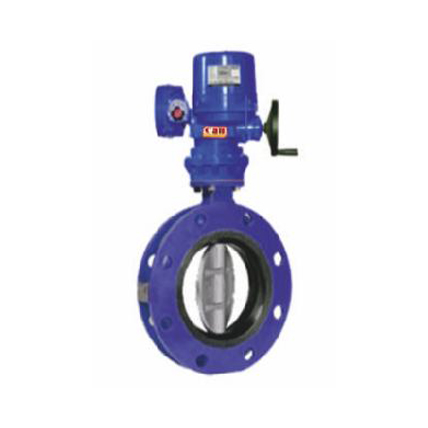

Double Flange Butterfly Valve with Electrical Actuator

Double Flange Butterfly Valve with Electrical Actuator

Specifications:

Actuator	: Electrical
Size Range	: 3" to 24"
Valve Body	: Cast Iron
Disc	: CF8/CF8M
Seals	: Nitrile/EPDM/Viton
Pressure	: PN 16 (Max.)
Oper.Temp.Range	: 80°C

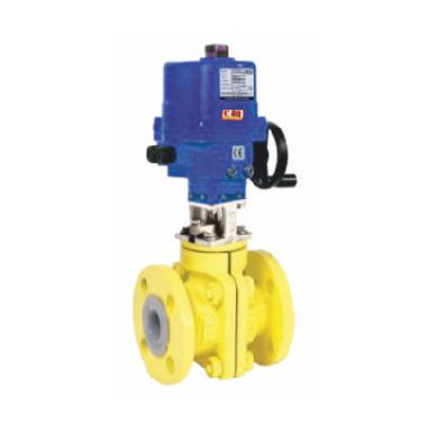

PTFE (FEP-PFA) Lined Ball Valve with Electrical Actuator

PTFE (FEP-PFA) Lined Ball Valve with Electrical Actuator

Specifications:

Actuator	: Electrical
Size Range	: 1/2" to 8"
Valve Body	: CF8/CF8M/WCB
Line	: FEP/PFA
Seals	: PTFE/GFT
Pressure	: 150#
Temp	: FEP 180°C : PFA 230°C

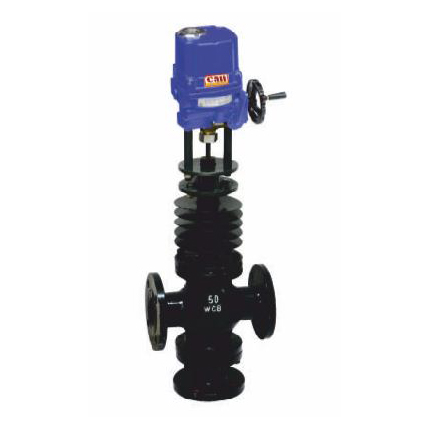

2/2 & 3/2 Way High Thermic Fluid Control Valve

2/2 & 3/2 Way High Thermic Fluid Control Valve

Specifications:

Operation	: Electrical
Туре	: Diaphragm Type Thermic Fluid Control Valve
Size Range	: 1" to 8"
Body & End Piece Diaphragm	: WCB/S.S.
Diaphragm	: Nitrile Canvas Moulded
Diaphragm Cover	: Sheet, Metal, Pressing
Working Press	: 150#
Working Temp	: Upto 450 °C
Seating	: Metal to Metal
Media	: Thermic Fluid

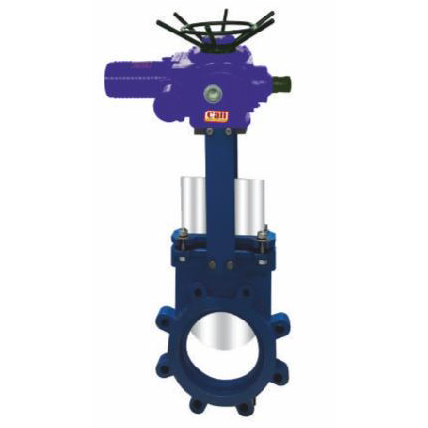

Lug Type Knife Edge Gate Valve

Lug Type Knife Edge Gate Valve

Specifications:

Operation	: Electrical
Size Range	: 2" to 20"
Valve Body	: CI/CS/CF8/CF8M
Seals	: AISI SS 304/316
Gland Packing	: Metal to Metal / NRV
Leakage Class	: Cotton Graphite Rope
Ends	: IV to V

Accessories

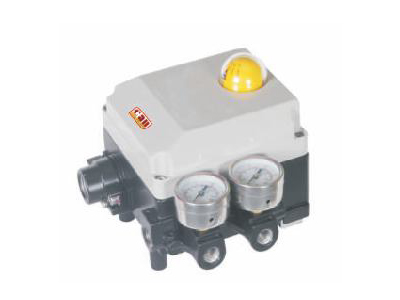

Electro Pneumatic Positioner

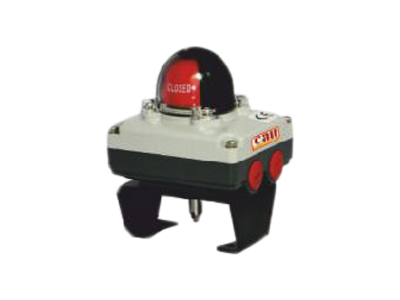

Limit Switch-Rotary

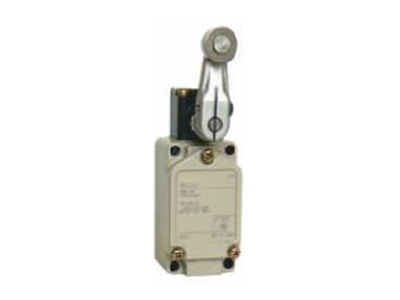

Limit Switch-Linear

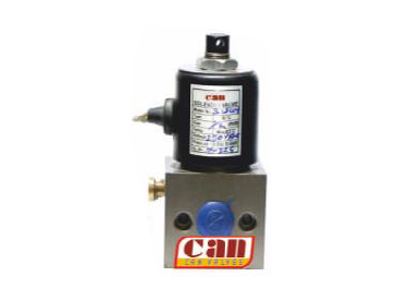

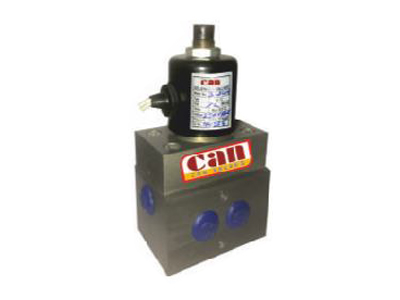

5/2 Namur Solenoid Valve

3/2 Namur Solenoid Valve

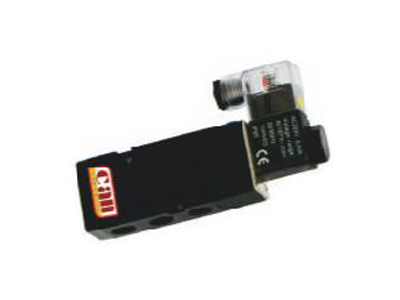

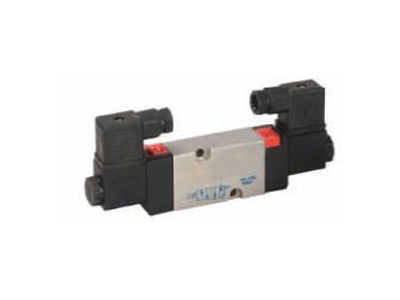

Double Coil Solenoid Valve

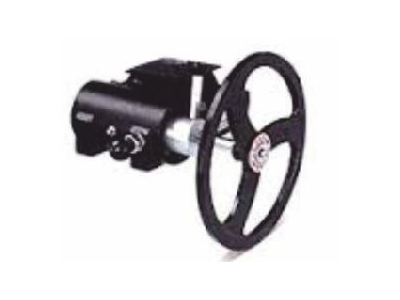

Manual Override
